Industrial Process Water Pipe Markers for Piping are used to identify properties, contents and fluid flow direction in piping. You can find them attached to pipes throughout a worksite or facility. Vizlent manufactures it in continuous roll form on weatherable vinyl with UV-stable inks and a permanent acrylic adhesive, rated from -30 to 80 degrees Celsius with a typical 5 to 7 year outdoor life. One roll cuts to length on site, so it marks every diameter from a small branch line to a large cooling main.
Pipe identification standards vary across countries, industries, and facilities, which is why High Performance Industrial Process Water Pipe Markers for Piping are designed to support a wide range of labeling requirements. Whether used in North America, Europe, Asia, Australia, or the Middle East, durable and clearly printed markers help facilities identify water lines, communicate flow direction, improve safety, and simplify maintenance throughout the piping network.
Why Facilities Choose Roll-Form High Performance Industrial Process Water Pipe Markers for Piping
The roll format is the product’s core advantage, and it shows up first in the procurement math. A facility buying pre-cut markers must stock a size for every pipe diameter it owns, while the High Performance Industrial Process Water Pipe Markers for Piping covers all of them from one item number, typically 30 meters to a roll. The benefits compound from there.
- Faster installation: crews cut, wrap, and move on, with no sorting through boxes for the right size.
- Reduced inventory: one SKU replaces a shelf of pre-cut variants, simplifying stores and reordering.
- Every diameter from one roll: a 25 mm branch and a 400 mm main take cuts from the same band.
- Lower procurement cost: bulk roll pricing beats per-piece pricing, and waste drops because every cut is the right length.
- Indoor and outdoor service: one construction handles mechanical rooms and exposed pipe racks alike.
- Custom legends and sizes: any wording, language, letter height, and color scheme prints to order.
There is one honest trade-off. Roll form asks the installer to make a clean cut and a neat wrap, where a pre-cut marker arrives finished, so very small jobs with one or two known diameters sometimes suit pre-cut better. At facility scale, the roll wins on every other line of the comparison.
Inside the Construction of High Performance Industrial Process Water Pipe Markers for Piping: Vinyl, Inks, and Adhesive
The High Performance Industrial Process Water Pipe Markers for Piping are a three-layer system, and each layer is chosen for a specific abuse. The facestock is weatherable self-adhesive vinyl, flexible enough to wrap pipe curvature without flagging at the ends and tough enough to take the abrasion of ladders, tools, and passing equipment. Vinyl is the deliberate choice over paper or polypropylene here, because it conforms to a curved, sometimes rough surface and stays conformed.
The print layer uses UV-stable inks that hold the colored field and white legend through years of light exposure, applied so the image is part of the marker rather than a coating that scratches away. Beneath everything sits a permanent acrylic adhesive engineered for industrial surfaces. The three layers of High Performance Industrial Process Water Pipe Markers for Piping are validated together, since a marker is only as durable as whichever layer fails first.
Adhesive Performance of High Performance Industrial Process Water Pipe Markers for Piping
Process piping presents a wider range of surfaces than most labeling jobs, and the acrylic adhesive is formulated for that spread: painted carbon steel, stainless, copper, galvanized, and the PVC or aluminum jacketing that wraps insulated lines. Smooth painted steel is the easy case. Jacketing seams, textured paint, and cold surfaces are where generic label adhesives quietly let go.
Temperature is the other half of adhesive performance, and the standard construction holds from -30 to 80 degrees Celsius in continuous service, spanning a chilled water loop and a warm process line on one roll. Hotter lines near boilers step up to a heat-resistant construction, and deep-cold service can draw on low temperature adhesive systems rated for application down to -40 degrees Celsius. Surface preparation completes the bond: a quick isopropyl alcohol wipe removes the dust, oil film, and condensation that block wet-out.
Unusual surface or temperature profile? Send the details to a Vizlent engineer and get peel data on your actual substrate before ordering.
Indoor vs Outdoor Durability of High Performance Industrial Process Water Pipe Markers for Piping
Durability splits cleanly by exposure. Indoors, the limiting factors are washdown spray, condensation on cool lines, and mechanical abrasion, all of which the vinyl face and sealed print system are built to shrug off, giving indoor markers a service life well beyond the outdoor rating. Outdoors, ultraviolet light becomes the clock, and the UV-stable construction is rated for a typical 5 to 7 years of direct exposure before fading threatens legibility.
Those ratings come from testing rather than optimism. Vizlent runs accelerated weathering on Xenon Arc equipment that simulates years of sunlight and moisture cycling, alongside shear and peel testing that confirms the adhesive keeps holding while the face keeps reading. A marker that survives the lab program survives the pipe rack, which is the entire point of rating material honestly.
Custom Printing and Legend Options for High Performance Industrial Process Water Pipe Markers for Piping
INDUSTRIAL WATER is one legend among hundreds a facility might need, so the printing system is built for customization. Any wording prints to order, in any language a multinational site requires, with letter heights from the standard 13, 19, 32, and 64 millimeters to custom sizes, and integrated flow arrows in the roll layout on request. The legend, not the catalog, defines the product.
Color schemes customize the same way. The green and white water combination ships as standard, and every other background and text pairing prints to match the color code a facility or national standard assigns, so one supplier covers the whole palette. OEM and private-label runs, including back-printing, are available for distributors building their own marker lines.
Need legends in multiple languages or a full color range? Send Vizlent your legend list for a consolidated print quote.
Economy and Premium Constructions of High Performance Industrial Process Water Pipe Markers for Piping
Not every line needs the same High Performance Industrial Process Water Pipe Markers for Piping, so the construction scales with the duty. The standard build, weatherable vinyl with UV-stable print, covers the great majority of indoor and sheltered outdoor service at the best price per meter. It is the economy choice only in the sense that it spends nothing on protection the location will never use.
Harsher locations justify the premium build, which adds a clear protective overlaminate from Vizlent’s laminating film range over the printed face. The laminate takes the abrasion, chemical splash, and scrubbing that would eventually wear any printed surface, extending life on washdown-intensive lines and exposed racks. Specify by location rather than habit, and the budget stretches across more of the facility.
Sizing, Arrows, and Placement Essentials of High Performance Industrial Process Water Pipe Markers for Piping
Three application rules for High Performance Industrial Process Water Pipe Markers for Piping carry most of the value regardless of which standard governs. Match the letter height to the finished pipe diameter, measuring over insulation jacketing rather than the bare pipe, so the legend reads from the floor. Include flow arrows, because direction is half of identification every time a line is isolated or traced.

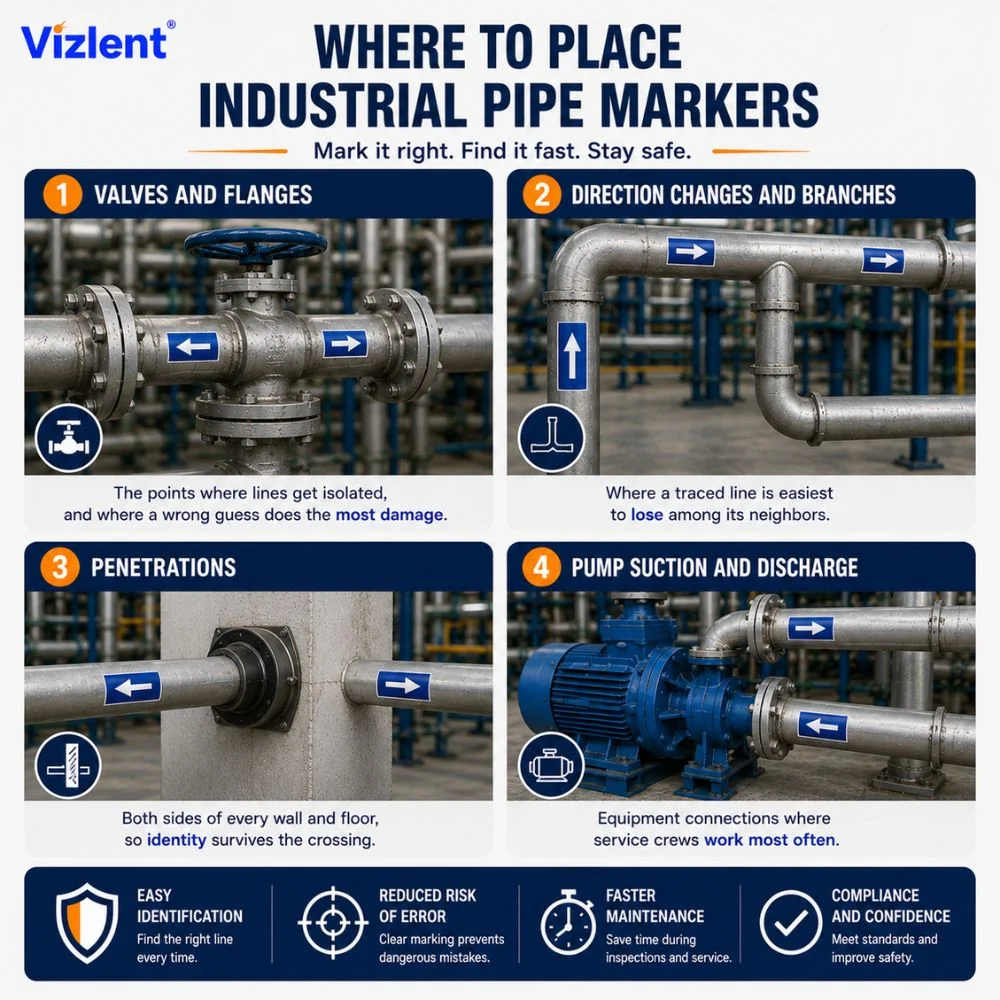

Then place markers where decisions happen: beside valves and flanges, at direction changes and branches, on both sides of wall and floor penetrations, and at regular intervals along straight runs, commonly every 8 to 15 meters. Aim each marker at the normal line of approach, low quarters on overhead pipes and upper quarters on low ones. A marker nobody can see from where they stand protects nobody.
Common Applications for High Performance Industrial Process Water Pipe Markers for Piping

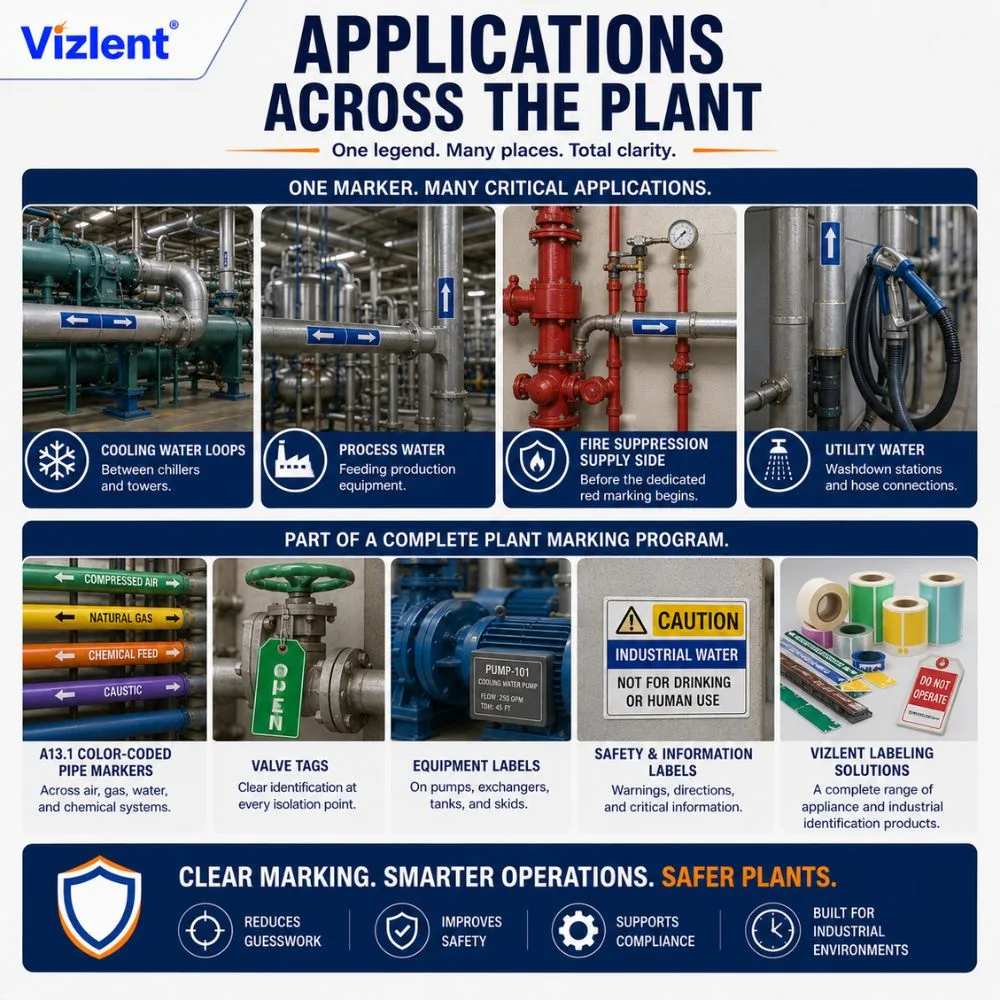

The INDUSTRIAL WATER legend earns its volume because almost every industrial sector runs the service it names. Cooling loops, process water, and utility distribution thread through nearly every plant, and the marker follows them.
- Manufacturing plants: cooling water to machine tools, presses, and process equipment.
- Food processing facilities: utility and washdown water lines in wet, hygiene-driven environments.
- Chemical plants: cooling and process water running beside lines that make identification non-negotiable.
- Water treatment facilities: raw, treated, and process streams concentrated in one building.
- HVAC systems: chilled and condenser water loops in commercial buildings and mechanical rooms.
- Power generation plants: circulating and auxiliary cooling water at large diameters.
- Pharmaceutical facilities: utility water identified clearly apart from purified water systems.
The shared thread across all seven is mixed-trade access. Staff, contractors, and inspectors all read the same pipes, and the marker is the one document every one of them can use. That is why the legend appears in plain words rather than codes.
Installing Roll-Form Industrial Water Pipe Markers in Minutes
Installation is deliberately simple, which is what lets a marking program scale without specialist labor. Cut the marker long enough to wrap the pipe with a slight overlap so the ends seal against washdown, wipe the surface with isopropyl alcohol, and apply with firm hand pressure from the center outward. On insulated lines, choose sound, dry jacketing rather than dented or damp sections.
Two shortcuts cause most field failures, and both are avoidable. Applying onto a sweating or frosted pipe blocks the adhesive from wetting out, and stretching the vinyl tight builds in tension that lifts the ends weeks later. A relaxed wrap on a clean, dry surface is the whole technique.
Ordering Industrial Water Pipe Markers : Minimums, Lead Times, and Custom Options
The commercial details are simple by industrial standards. Vizlent supplies the marker from a minimum order of 10 rolls, at typically 30 meters per roll, with custom lengths available, on a lead time of 7 to 12 working days after artwork approval. Free stock samples ship on request, so the adhesive can be proven on the actual pipe surfaces before the order is placed.
Customization covers what real projects need. Letter heights run from the standard 13, 19, 32, and 64 millimeters to custom sizes, flow arrows integrate into the roll layout on request, and contractors covering full facilities can place blanket orders spanning multiple legends and colors to consolidate procurement. One purchase order can carry the whole A13.1 palette.
Ready to price a project? Send Vizlent your legend list and pipe survey for a consolidated factory-direct quote.
Source INDUSTRIAL WATER Pipe Markers From Vizlent
High Performance Industrial Process Water Pipe Markers for Pipingfor process piping come down to a short specification done carefully: the A13.1 green and white scheme, a legend in plain words, letter heights matched to the finished pipe diameter, flow arrows where direction matters, and a vinyl construction that outlasts washdown, condensation, and sun. The roll-form format then makes the whole program practical, one roll covering every diameter on the run.
Vizlent manufactures roll-form pipe markers at its Shenzhen facility on weatherable vinyl with UV-stable inks and permanent acrylic adhesive, rated from -30 to 80 degrees Celsius with a typical 5 to 7 year outdoor life. As a direct manufacturer since 2011 with ISO 9001, FSC, and SGS certification, we print every A13.1 color and legend with a 10-roll minimum in 7 to 12 working days, and back each order with free stock samples. Reach out today and put markers on your water lines that stay readable for the life of the plant.
Contact Vizlent for a quote and free samples, and source pipe markers and labels built for process conditions.
Frequently Asked Questions
What is an INDUSTRIAL WATER pipe marker?
It is a self-adhesive pipe identification label printed with the legend INDUSTRIAL WATER in white text on a green background, following the ANSI/ASME A13.1 color scheme for water service. Supplied in continuous roll form, it cuts to length on site and identifies process, cooling, and utility water lines at a glance.
What color are High Performance Industrial Process Water Pipe Markers for Piping?
Green with white text, the A13.1 combination is assigned to water in non-firefighting service, covering potable, cooling, process, and boiler feed lines. Water dedicated to fire suppression is the exception and carries red with white text, so the two services never share a color at a connection point.
What does roll form mean for pipe markers?
Roll form means the marker arrives as a continuous printed band, typically 30 meters long, instead of individual pre-cut labels. Installers cut each marker to the length the pipe diameter demands, so one roll covers small branch lines and large mains alike, and long runs install without a box of leftover sizes.
What letter height should a pipe marker use?
Letter height scales with the finished pipe diameter, so the legend reads from the floor. Standard heights of 13, 19, 32, and 64 millimeters cover the A13.1 tiers from small-bore lines to large mains, and insulated pipes are measured over the jacketing, not the bare pipe inside it.
Will the marker stick to insulated and stainless pipes?
Yes. The permanent acrylic adhesive bonds to painted steel, stainless steel, copper, and most insulated pipe jacketing materials. For best results, wipe the surface with isopropyl alcohol before application to remove dust, oil, and condensation, and press the marker on with firm hand pressure from the center outward.
How long do pipe markers last outdoors?
Vizlent’s vinyl construction with UV-stable inks carries a typical outdoor life of 5 to 7 years, with indoor service lasting significantly longer. UV resistance is the deciding attribute outdoors, since a faded legend fails the legibility requirement even when the label itself stays attached.
What is the minimum order and lead time?
The standard minimum is 10 rolls, with production typically running 7 to 12 working days after artwork approval. Free stock samples are available before ordering, and contractors can place blanket orders covering multiple legends and colors to consolidate a full facility program into one procurement.
Is High Performance Industrial Process Water Pipe Markers for Piping enough for fire suppression piping?
No. The supply side feeding a fire system can carry the green water marker, but piping dedicated to fire suppression must wear red with white text under A13.1. Keep the boundary between the two schemes crisp at the point where the dedicated fire service begins, since responders read color first.
