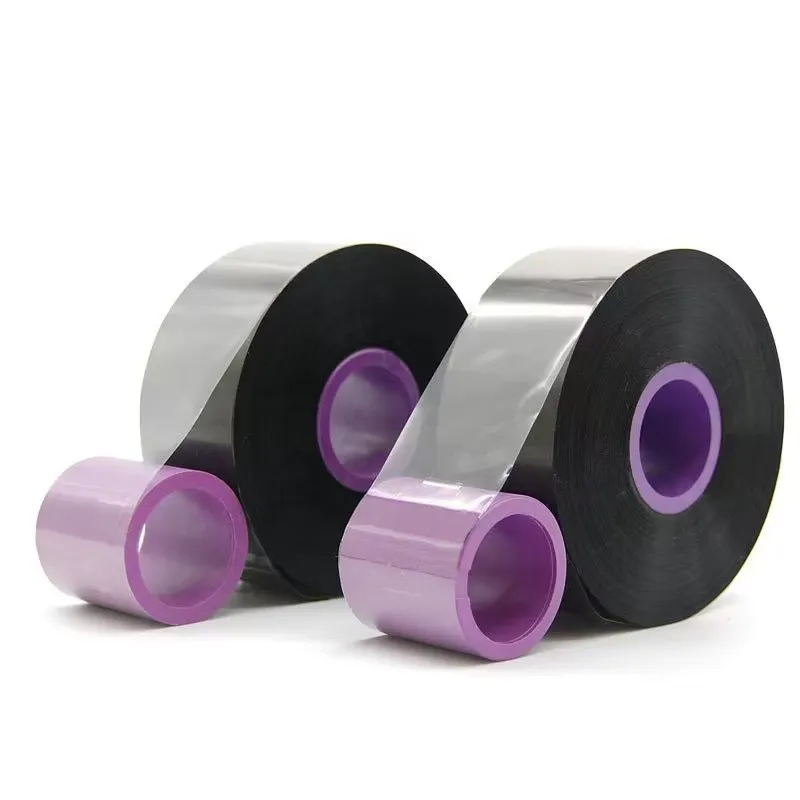

Key Characteristics of Near Edge Ribbons
The primary characteristic defining an industrial-grade near edge ribbon is its capacity for extreme heat resistance up to 300°C (572°F). During surface mount technology (SMT) processes, the printed circuit board and its identifying labels are subjected to the severe thermal shock of reflow and wave soldering. Standard wax or wax-resin hybrid inks will immediately liquefy, off-gas, or smear under such extreme thermal loads. In contrast, our engineered extreme heat resin ribbon remains structurally stable. The ink formulation chemically bonds with Polyimide (Kapton) and high-temp PET, locking the pigment into the substrate’s top coating to maintain ultra-fine barcode resolution for micro labels.
Furthermore, extreme thermal survivability must be paired with aggressive flux and chemical wash resistance. After soldering, PCB assemblies undergo rigorous cleaning to eliminate corrosive solder paste residue. A wash resistant barcode ribbon must withstand prolonged exposure to harsh industrial saponifiers, defluxing solvents, and aggressive ultrasonic cleaning baths. Our near edge ribbon formulations are engineered to remain completely smudge and scratch proof, ensuring that the 2D matrix codes required for component genealogy remain perfectly scannable by automated optical inspection (AOI) systems throughout the entire production lifecycle.
Technical Specifications and Compliance of Near Edge Ribbons
Evaluating the technical specifications of a near edge ribbon is essential for procurement managers to ensure compatibility with existing hardware and substrate materials. Precise matching of the ribbon’s performance traits to the specific environmental stressors guarantees a compliant, long-lasting labeling solution. Below is a detailed comparison of our core near-edge thermal transfer formulations.
| Specification Metric | Polyimide Barcode Ribbon | Wash Resistant Resin | ESD Anti-Static Thermal Ribbon |
|---|---|---|---|
| Carrier Film Thickness | 4.5 μm PET | 4.5 μm PET | 4.5 μm PET (Conductive) |
| Melting Point | > 110°C | > 120°C | > 110°C |
| Max Temperature Limit | 260°C (500°F) | 300°C (572°F) | 300°C (572°F) |
| Substrate Compatibility | High-Temp PET, Polyimide | Polyimide (Kapton) | Polyimide (Kapton) |
| Primary Resistance | Reflow Soldering | Aggressive Chemical Wash | Electrostatic Discharge |
Performance Standards and Testing Methodologies
VIZLENT implements rigorous testing methodologies to validate the performance of every near edge ribbon batch. Tensile strength is continuously monitored to ensure the 4.5 μm PET carrier film withstands the high-torque environments of modern industrial near-edge printers. Peel strength testing verifies that the specialized super-resin formulation chemically bonds with Polyimide (Kapton) and high-temp PET, ensuring the label cannot be mechanically removed without destroying the substrate itself.
To guarantee aggressive flux and chemical wash resistance, printed samples are subjected to standardized immersion testing. Labels are submerged in aggressive industrial saponifiers and subjected to ultrasonic cavitation for extended periods. A compliant wash resistant barcode ribbon must emerge with zero degradation to the ultra-fine barcode resolution. Furthermore, smudge and scratch proof characteristics are verified using mechanical crockmeters, simulating years of harsh industrial handling and abrasive contact to validate the overall service life of the printed safety identification.
Industry Certifications and Regulatory Compliance
In highly regulated industries, the certifications carried by a near edge ribbon are as critical as its physical performance. VIZLENT ensures that our thermal transfer products support full compliance with global safety identification and environmental mandates. When paired with approved substrate materials, our resin formulations are UL 969 Recognized, certifying their durability and permanence for critical rating plates, safety warnings, and CSA approved labeling systems.
Furthermore, our entire product line is strictly RoHS compliant and REACH certified, guaranteeing the absence of restricted heavy metals and hazardous chemicals in our manufacturing processes. For the electronics manufacturing services (EMS) sector, our products are Halogen-free, preventing the release of toxic, corrosive gases during potential incineration. The integration of ESD-safe compliant properties further aligns with strict IEC compliance standards, providing a comprehensive, risk-free labeling consumable backed by our ISO 9001:2015 certified manufacturing protocols.
Types and Variations of Near Edge Ribbon

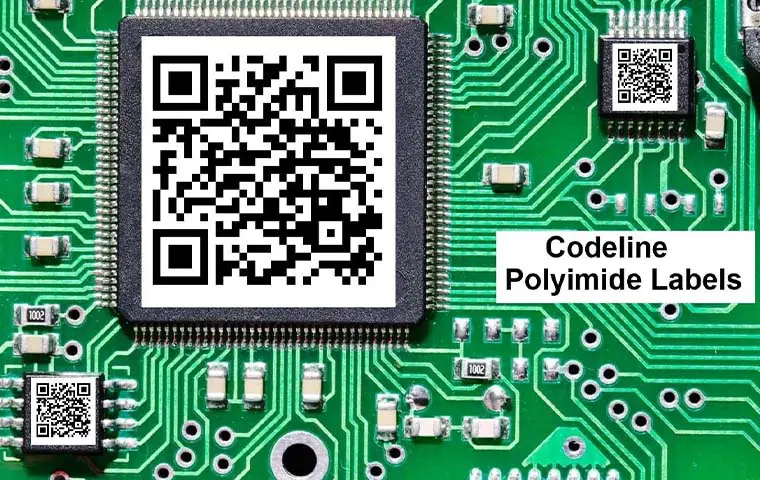

Polyimide Barcode Ribbon for PCB Tracking
This specific extreme heat resin ribbon undergoes rigorous laboratory testing to validate its peel strength and scratch resistance post-soldering. Once the board exits the thermal phase, the die-cut label often encounters physical handling and automated routing mechanisms. The smudge and scratch proof nature of this formulation guarantees that friction from robotic assembly arms or conveyor systems will not degrade the safety identification marks, maintaining compliance with strict internal quality control protocols.

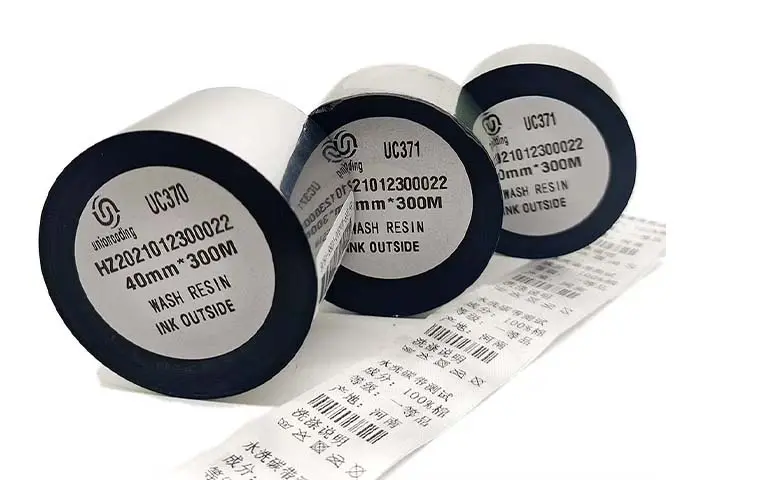

Wash Resistant Barcode Ribbon
Our wash resistant barcode ribbon is formulated to withstand prolonged exposure to Kyzen, Zestron, and other industrial cleaning chemistries. The >110°C high melting point ensures that the resin remains locked into the substrate, functioning as an impenetrable barrier. This specialized near edge ribbon is vital for electronics manufacturing services (EMS) that operate under zero-defect mandates, ensuring that asset tracking data survives the most aggressive manufacturing environments intact.

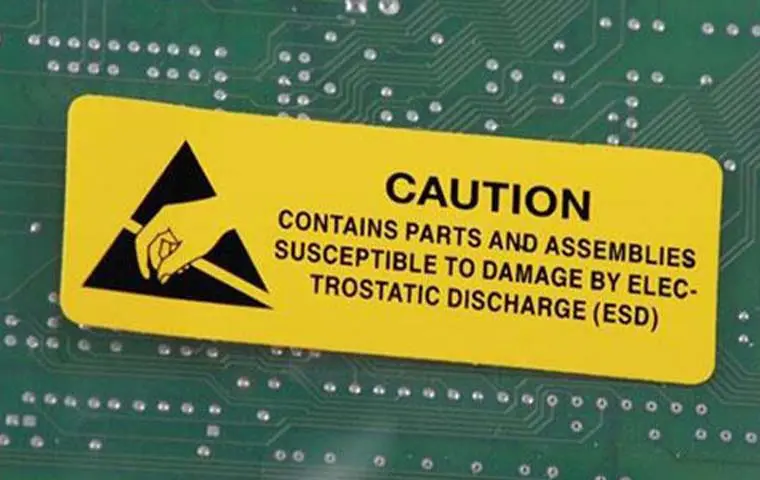

ESD Anti-Static SMT Thermal Ribbon
By integrating these ESD anti-static properties, this polyimide barcode ribbon protects the expensive piezoelectric elements of the thermal printhead from static-induced blowout. More importantly, it ensures that the labeled components are not subjected to latent electrostatic damage during the application process. This variant is strictly compliant with ANSI/ESD S20.20 and IEC compliance standards, making it the mandatory choice for cleanroom environments and high-reliability aerospace defense component manufacturing.
Frequently Asked Questions
A near edge ribbon is a specialized thermal transfer film engineered for printers with angled printheads. Utilizing a rapid-release, high-melting-point super-resin formulation, it instantly chemically bonds with synthetic substrates. This enables ultra-fast, high-volume printing while maintaining extreme heat resistance and aggressive flux defense.
Flat head printers hold the ribbon and substrate together for a short distance after heating to allow the ink to cool. Near-edge printers separate them instantly. Therefore, a near edge ribbon requires a highly specialized formulation that releases and cures instantly to prevent smearing at high speeds.
Yes, when paired with a compatible polyimide substrate, an extreme heat resin ribbon designed for near-edge printers will survive reflow and wave soldering processes. The specialized super-resin formulation boasts extreme heat resistance up to 300°C (572°F) without losing its ultra-fine barcode resolution.
During high-speed printing, the rapid unspooling of the PET carrier film generates significant triboelectric static charges. An ESD anti-static thermal ribbon dissipates this charge safely. This prevents static shocks from destroying sensitive electronics during PCB tracking and protects the expensive printhead elements from blowing out.
An industrial near edge ribbon is engineered to chemically bond with non-porous, highly durable synthetic substrates. Optimal compatibility includes Polyimide (Kapton) and top-coated high-temp PET. Utilizing these ribbons on porous paper or low-surface-energy plastics will result in poor adhesion and compromised chemical-resistant performance.
