Wrap Around Label for Network Infrastructure and Industrial Electrical Wiring
- Self-laminating wrap-around design
- White print area with transparent overlap
- UL 94 V-0 flame-retardant material
- Conforms to small-diameter patch cords
- Resistant to abrasion and cleaning agents</li><li>Stable from -40 °C to 105 °C
Wrap Around Label for Network Infrastructure and Industrial Electrical Wiring Features

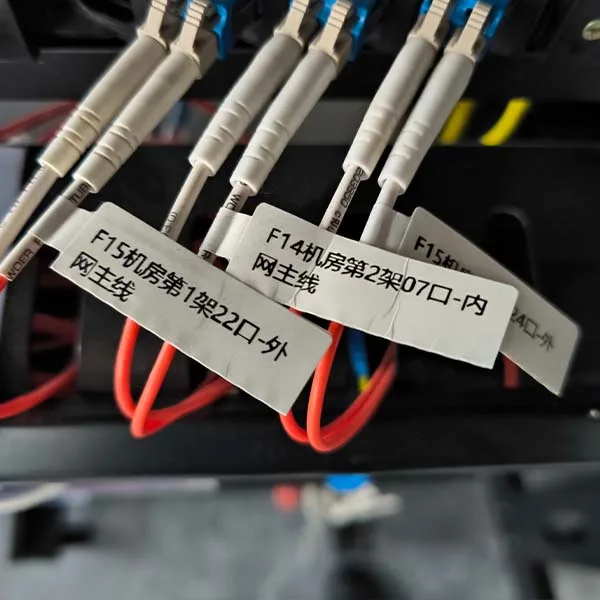

The Wrap Around Label for Network Infrastructure and Industrial Electrical Wiring from Vizlent is built for high-density cable environments where every patch cord, fiber jumper, and control wire must be uniquely traceable.
The label uses a self-laminating construction in which a clear film tail wraps over the printed white zone, sealing barcodes, port numbers, and circuit IDs against abrasion from constant moves, adds, and changes.
The flexible film conforms tightly to small-diameter cables typical of network and structured cabling environments, including Cat 5e/6/6A patch cords, fiber jumpers, and control wiring inside electrical panels. UL 94 V-0 flame retardancy and an aggressive permanent acrylic adhesive ensure long-term identification reliability in both server rooms and industrial cabinets.
Specifications
| Item | Wrap Around Label for Network Infrastructure and Industrial Electrical Wiring |
|---|---|
| Brand | Vizlent |
| Material | Flame-retardant vinyl or polyester film |
| Construction | White printable zone + clear self-laminating tail |
| Flame Rating | UL 94 V-0 |
| Temperature Resistance | -40 °C to 105 °C continuous |
| Adhesive Type | Permanent high-tack acrylic |
| Adhesive Performance | Resists cleaners, oils, and humidity |
| Cable Diameter Range | 1.5–15 mm typical; custom on request |
| Thickness | 50–75 μm face stock |
| Printing Compatibility | Resin thermal transfer or laser printing |
| Format | Rolls or A4 / letter sheets |
| MOQ | 1,000 pcs |
| Sample | Free stock samples; custom samples chargeable |
| Payment Term | T/T, PayPal, L/C |
| Production Time | 7–12 working days after artwork approval |
Applications:
Data center patch panels, structured cabling, telecom MDF/IDF rooms, industrial control wiring, PLC and DCS panels, building automation systems, and broadcast facilities.
You May Also Need
-
Circuit Board Label & PCB Labels Comprehensive range covering pre-reflow, post-reflow, and standard-service PCB labelling Face material options: polyimide (PI), white-coated PI, high-temp PET, standard PET Adhesive options matched to process temperature: silicone, high-temp acrylic, or standard acrylic Compatible with FR-4, ceramic, aluminium PCB, flex circuit, and component body surfaces Supports thermal-transfer, laser, and pre-printed […]
-
Automatic PCB Labelling Heat Resistant Labels Precision die-cut labels on accurately wound rolls for automated label applicators Consistent label gap and registration enables reliable tamp-blow and wipe-on application Polyimide face rated for lead-free SMT reflow up to 260 °C High-temperature silicone adhesive — stable, non-flowing, no outgassing at reflow White-coated polyimide face option for high-contrast […]
-
300 Degree Polyimide Labels for Semiconductor and Printed Circuit Board Manufacturing Processes Polyimide film rated for short-duration exposure up to 300 °C Survives semiconductor backend packaging processes and high-temperature cure ovens High-temperature silicone adhesive stable at continuous 260 °C and short-peak 300 °C No thermal decomposition, discolouration, or dimensional change at rated temperatures Send Your […]
-
Data Matrix Polyimide Labels for PCB identification Data Matrix ECC200 code encodes high data density in a compact square symbol Polyimide base film rated for continuous and peak service to 260 °C Survives lead-free SMT reflow without code degradation or delamination White-coated polyimide face provides high print contrast for reliable 2D scan rates Supports very […]
-
PCB Labels for Printed Circuit Board and Electronics Broad substrate compatibility: FR-4, ceramic, aluminium, and flex PCBs Heat-resistant polyimide or high-temperature polyester face material Stable adhesion through reflow, wave soldering, and cleaning processes Supports thermal-transfer, laser, and pre-printed barcode and QR code formats Available with sequential serial numbers, Data Matrix, Code 128, or QR codes […]
-
PCBs Labels Heat Resistant Labels Withstands SMT reflow soldering peak temperatures up to 260 °C Polyimide or high-temperature polyester face material options High-temperature silicone or acrylic adhesive — no bleed, no char Dimensionally stable through thermal cycling — no curl or shrinkage Compatible with thermal-transfer (resin ribbon) printing for permanent legends Send Your Inquiry Now […]
-
Adhesive Cable Labels Self Laminating Vinyl Labels from Vizlent offer strong bonding, print protection and durable wire identification.
-
Wrap-around Clear Laminated Cable Wire Marker Labels by Vizlent protect printed IDs with clear laminate, ensuring durable wire tracking.
-
Vinyl Wrap Around Cable Labels from Vizlent deliver flexible cable marking, strong adhesion, weather resistance and lasting identification.
Frequently Asked Questions
Yes. We supply the wrap around label in both A4/letter laser sheets and continuous rolls for industrial thermal transfer printers. Custom sizes, layouts, and pre-printed color bands can be applied to match your cabling color code or data-center naming convention.
Yes. We design the white print zone and the clear self-laminating tail to conform around cables as small as 1.5 mm in diameter, which covers the typical range of network patch cords and most fiber jumpers. For tightly bundled cables we can supply narrower formats so adjacent labels remain readable.
The standard MOQ is 1,000 pieces per layout. Lead time is typically 7–12 working days after artwork approval, and we can ship by air courier or sea freight depending on order size and destination.
Print durability is the single most important attribute, because cables in active equipment are repeatedly handled during moves, adds, and changes. The self-laminating tail seals the printed image under a clear film, so VIZLENT wrap around labels remain readable years after installation.
Yes. The label stock is engineered for resin thermal transfer ribbons and laser printers from major brands. Our standard die layouts also match common templates in cable labeling software, allowing direct import and printing without redesign.
