Fire Retardant Labeling
- UL 94 V-0 rated face stock
- Self-extinguishing in seconds
- Low smoke and halogen-free options
- Strong permanent acrylic adhesive
- Resistant to solvents and abrasion
- Stable from -40 °C to 150 °C
Fire Retardant Labeling Features
Fire Retardant Labeling from Vizlent is engineered for electrical, electronic, and industrial assets where unintended ignition must be prevented.
The labels use UL 94 V-0 rated polymer face stocks that self-extinguish within seconds when removed from a flame source, dripping only non-igniting particles.
This behavior is achieved through halogenated or phosphorus-based flame retardant additives compounded directly into the film during extrusion.
Combined with a high-temperature permanent acrylic adhesive, our fire retardant labeling maintains legibility and adhesion across the service life of cabinets, wire harnesses, transformers, and control units. Variable data, barcodes, and serialization can be printed using standard thermal transfer ribbons.
Specifications
| Item | Fire Retardant Labeling |
|---|---|
| Brand | Vizlent |
| Material | UL 94 V-0 rated PET, PI, or vinyl film |
| Flame Rating | UL 94 V-0 (file reference upon request) |
| Temperature Resistance | -40 °C to 150 °C continuous |
| Adhesive Type | High-temperature permanent acrylic |
| Adhesive Performance | Resists oils, solvents, and humidity |
| Thickness | 50–125 μm (face stock dependent) |
| Color | Matte white, silver, or custom |
| Printing Compatibility | Thermal transfer (resin ribbon recommended) |
| Size | Custom; from 10 × 5 mm up to A4 |
| MOQ | 1,000 pcs |
| Sample | Free existing samples; custom samples chargeable |
| Payment Term | T/T, PayPal, Western Union, L/C |
| Production Time | 7–12 working days after artwork approval |
Applications:
Switchgear and panel boards, transformer nameplates, battery packs, wire harness identification, lithium-ion energy storage systems, white goods, and industrial control cabinets.
You May Also Need
-

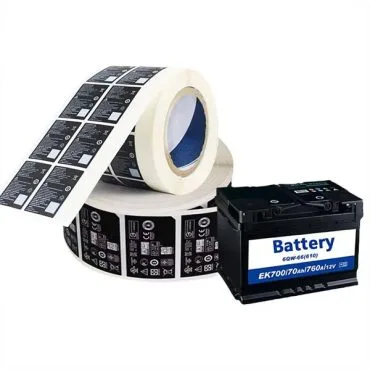

Flame-retardant Polyester Labels For Electronics Industry by Vizlent. UL 94 V-0 PET, durable barcodes, heat and solvent resistant, ideal for OEM traceability.
-

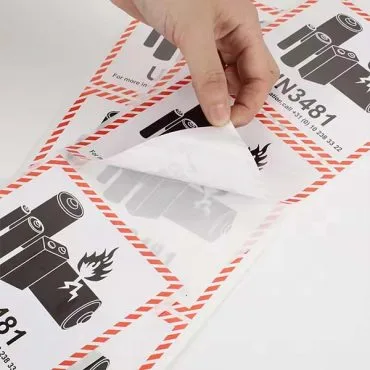

Flame Retardant Label High Temperature Resistant Labels from Vizlent. UL 94 V-0, withstands 260 °C, ideal for PCB, electronics, and battery traceability.
-

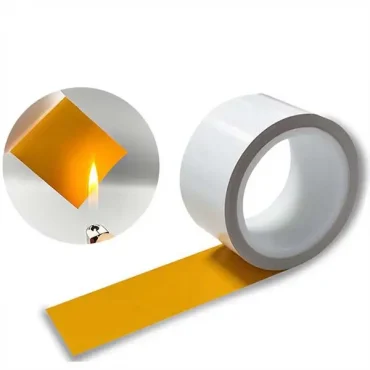

Flame Retardant Polyimide Label Material from Vizlent. UL 94 V-0, withstands 260 °C reflow soldering, ideal for PCB and electronics traceability barcodes.
-

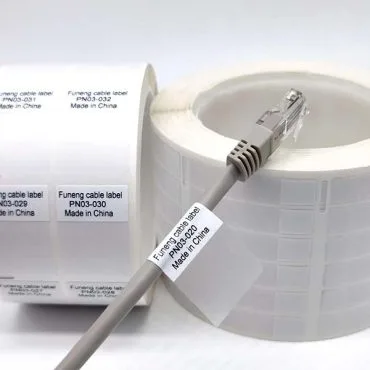

Vinyl Flame Retardant Material Wrap Around Wire Labels by Vizlent. Self-laminating, UL 94 V-0, flexible vinyl, ideal for cable harness ID in electronics.
-

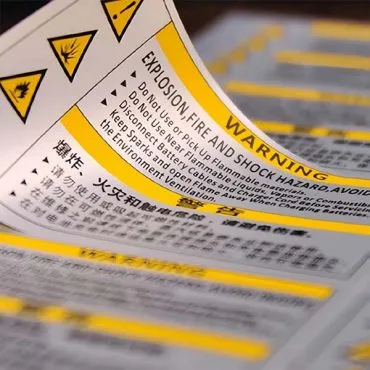

Flame Retardant Identification Labels by Vizlent. UL 94 V-0 face stock, durable barcode printing, resistant to heat and solvents, for electronics and panels.
-
Fire Retardant Labeling from Vizlent. UL 94 V-0 rated material, self-extinguishing, abrasion and solvent resistant, ideal for electronics and electrical OEMs.
-

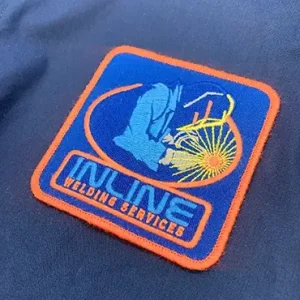

Inherently flame-resistant woven or printed labels meet EN 11612 and NFPA 2112 standards. Used for PPE, workwear, and FR garment identification in oil, gas, and electrical industries.
-
Halogen-free flame-retardant facestock self-extinguishes upon ignition per UL 94 V-0. Suited for upholstery, technical textiles, and protective clothing compliance labeling in regulated industries.
-
Laser or thermal transfer-compatible FR facestock meets UL 94 V-0 flammability ratings. Used for on-demand compliance labeling of electrical enclosures, cables, and industrial equipment.
Frequently Asked Questions
Yes. We offer fully custom sizes, die-cut shapes, and face stock choices including PET, polyimide, and flame-retardant vinyl. The adhesive can be specified as standard permanent, high-temperature, or low-surface-energy depending on the substrate and operating environment.
Our standard fire retardant labeling carries a UL 94 V-0 rating, meaning that after a controlled flame exposure the material self-extinguishes within a short interval and any drips are non-igniting. We can supply UL file references and manufacturer test reports during qualification on request.
The standard MOQ is 1,000 pieces per SKU, and production lead time is typically 7–12 working days after artwork approval. For repeat customers we can hold material in stock against rolling forecasts to shorten lead time on subsequent orders.
Solvent and abrasion resistance is critical for industrial nameplate applications. VIZLENT pairs durable polymer face stocks with a permanent acrylic adhesive, so the labels withstand routine exposure to mineral oils, IPA, mild alkaline cleaners, and mechanical wear typical of switchgear and machinery surfaces.
Yes. Our face stocks are formulated to accept resin thermal transfer ribbons, producing sharp barcodes, QR codes, and serial numbers that resist smudging and chemical attack. We can also pre-print fixed graphics in offset or flexo and leave a dedicated zone for in-house variable printing.
