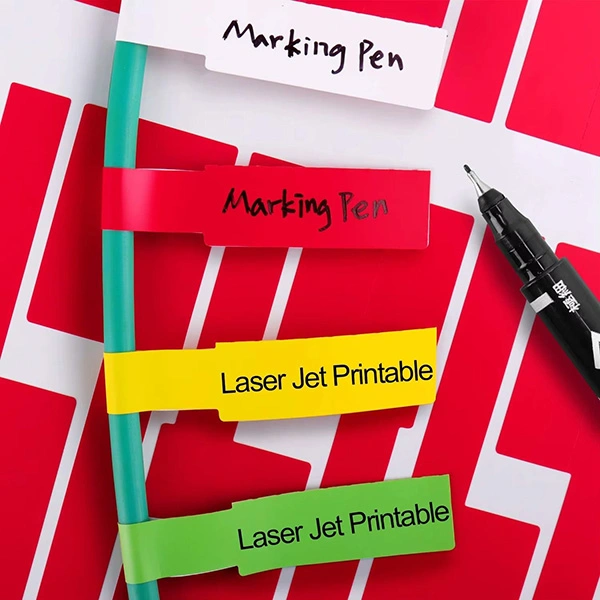

Electrical and UTP Wire Labels for Laser Printers
- Engineered for reliable feed and sharp toner adhesion through A4 laser printers
- Polyester face material withstands laser fuser heat without warping or label lifting
- Suitable for both electrical control wiring and UTP network cable identification
- Self-adhesive wrap-around format for cables from 2 mm to 12 mm diameter
- Sheet stays flat and labels remain on liner throughout the print process
Laser-Printer-Ready Wire Labels for Electrical Panels and Network Cabling
Electrical and UTP Wire Labels for Laser Printers are a dual-purpose sheet-format labelling solution designed to serve both electrical panel wiring identification and UTP network cable marking from a single product format, using the A4 laser printer already present in most engineering offices and IT departments.
The polyester face material is specifically selected for laser printer compatibility: it withstands the heat generated by the fuser unit — typically 150–200 °C — without the sheet warping, the labels lifting from the liner, or the face material discolouring, all of which are common failure modes when standard paper label sheets are used in high-temperature laser printers.
The result is a sharp, high-resolution printout with excellent toner adhesion that produces consistently legible circuit codes, port numbers, and barcodes across the full sheet.
Once applied to a cable, the permanent acrylic adhesive on VIZLENT’s Electrical and UTP Wire Labels for Laser Printers maintains its bond on the full range of cable insulation materials encountered in mixed electrical and network installations — including PVC, LSZH, rubber, and PE — at operating temperatures from ambient data centre conditions through to the elevated temperatures of electrical panels and control cabinets.
- The printed content produced by laser toner on polyester is significantly more durable than inkjet or hand-written labels, resisting smearing, fading, and abrasion from the repeated cable handling that occurs in both panel maintenance and network reconfiguration activities.
Applications of Electrical and UTP Wire Labels for Laser Printers
Electrical control panel and switchgear circuit reference labelling using office laser printers
Industrial MCC and PLC cabinet wiring identification in-house printing workflow
Building management and fire alarm system cable marking
IT room and data centre patch panel and cable tray management
Field service engineering kit cable identification for equipment installation
UTP Cat5e, Cat6, and Cat6A patch cable and port identification
Specifications
Electrical and UTP Wire Labels for Laser Printers should be specified by laser printer fuser temperature compatibility, cable jacket adhesive performance across PVC and LSZH substrates, and print durability under the combined mechanical and chemical demands of electrical panel and network cabling environments.
| Item | Electrical and UTP Wire Labels for Laser Printers |
|---|---|
| Brand | Vizlent |
| Sheet Format | A4 (210 × 297 mm); multiple labels per sheet (count by size) |
| Face Material | White polyester (PET) — laser printer and fuser compatible |
| Fuser Temperature Compatibility | Up to 200 °C (suitable for standard laser printer fuser units) |
| Adhesive Type | Permanent acrylic — bonds to PVC, LSZH, rubber, PE insulation |
| Compatible Cable Diameters | 2 mm – 12 mm (electrical panel and UTP network cable range) |
| Print Quality | High-resolution text and barcode — compatible with mono and colour laser |
| Temperature Range (Service) | -25 °C to +105 °C |
| Chemical Resistance | Oils, IPA, mild solvents, electrical cleaning sprays |
| Liner Behaviour in Printer | Labels retained on liner during printing — no jam risk |
| Template Compatibility | Microsoft Word, Avery, standard label software |
| MOQ | 50 sheets per specification |
| Sample | Sample sheet on request |
| Payment Term | T/T 30% deposit, balance before shipment |
| Production Time | 5–10 working days after order confirmation |
Performance Standards
Electrical and UTP Wire Labels for Laser Printers are relevant to IEC 60445 (identification of electrical conductors and terminals), ANSI/TIA-606-C (telecommunications cabling administration), and UL 969 (marking and labelling systems for durability and legibility), which collectively define requirements for print legibility, label adhesion, and identification persistence in electrical and network cable marking applications.
Certifications
VIZLENT manufactures these laser-printable wire labels under ISO-certified production processes and tests materials for RoHS and REACH compliance, making them suitable for electrical installation and structured cabling projects in EU, US, and Asia-Pacific markets.
You May Also Need
-
Electrical Voltage Warning Labels Hazard Sign Yellow with Black Print High-contrast yellow face with black print for maximum hazard visibility Pre-printed with “HIGH VOLTAGE”, “DANGER”, “CAUTION”, or custom warning text Lightning bolt hazard symbol per ISO 7010 (W012) available as standard Durable polyester or polypropylene face resists UV, moisture, and cleaning agents Aggressive permanent adhesive […]
-
Electrical Cable Label Self Laminating Labels Integrated clear overlaminate tail encapsulates printed zone on application Protects circuit codes and barcodes from abrasion, oils, and cleaning agents Suitable for electrical panel wiring, industrial cables, and field service conduit runs Available in roll format for thermal-transfer and inkjet cable label printers Compatible with cable diameters from 3 […]
-
Electrical and UTP Wire Labels for Laser Printers Engineered for reliable feed and sharp toner adhesion through A4 laser printers Polyester face material withstands laser fuser heat without warping or label lifting Suitable for both electrical control wiring and UTP network cable identification Self-adhesive wrap-around format for cables from 2 mm to 12 mm diameter […]
-
30PCS/Sheet Network Electrical Cable Labels 30 labels per A4 sheet for high-yield in-house laser printer cable labelling Self-adhesive wrap-around format bonds to round cable jacket surfaces Compatible with standard A4 mono and colour laser printers White polyester or polypropylene face for sharp, durable print output Suitable for network patch cables, electrical control cables, and data […]
-
UTP Cat6 Labels Electrical Wire Self Laminating Labels Self-laminating clear overlaminate wraps over printed zone for abrasion and moisture protection Compatible with UTP Cat5e, Cat6, Cat6A, and standard round patch cord diameters Write-on zone accepts permanent markers, ballpoint pens, and thermal-transfer print Clear wrap section bonds to cable jacket for a secure, professional finish Available […]
-
T-Flag Wire Labels for Electrical Cables T-flag fold creates dual-sided readable panel on each cable Wraps and adheres firmly around cable jacket without connector interference Compatible with cable diameters from 2 mm to 20 mm Plasticiser-resistant adhesive maintains bond on PVC wire insulation Printable via thermal transfer, laser, or permanent marker Send Your Inquiry Now […]
Frequently Asked Questions
Yes. VIZLENT manufactures Electrical and UTP Wire Labels for Laser Printers in custom label sizes tailored to specific cable outer diameters and print content requirements. We accept customer-supplied dimensional specifications and produce custom die-cut layouts on A4 sheets, along with a print template file for your label software. Custom sheet tooling is typically completed within 5–7 working days before production begins.
No. VIZLENT’s Electrical and UTP Wire Labels for Laser Printers use a polyester face material bonded to a paper liner that is engineered to maintain sheet flatness through the laser printer’s fuser unit at temperatures up to 200 °C. The die-cut labels are fully retained on the liner during printing, so there are no free label edges to catch in the paper path. We recommend feeding from the manual bypass tray for best results, particularly in high-speed laser printers with aggressive paper path curvature.
The minimum order quantity for Electrical and UTP Wire Labels for Laser Printers is 50 sheets per specification — a deliberately low threshold to support individual project requirements without forcing engineers to hold excess stock. For larger infrastructure programmes requiring high volumes, VIZLENT offers quantity-break pricing. Sample sheets for printer compatibility testing are available on request from our sales team before any production commitment.
Laser toner fused onto VIZLENT’s polyester face material produces a durable print that is resistant to the elevated temperatures, humidity, and trace oil contamination found in electrical panels operating at up to 80 °C. Polyester face material does not absorb moisture or plasticiser from the cable jacket, which preserves both the print quality and the adhesive bond over long service periods. For panels operating above 80 °C, we recommend specifying our dedicated high-temperature panel label product rather than the laser-printer sheet format.
Yes. VIZLENT’s Electrical and UTP Wire Labels for Laser Printers are compatible with any software that can produce an A4 label print layout, including Microsoft Word (using table or label templates), Avery Design & Print, and IT cable management platforms with label print export functions. We provide the label dimension and grid specification with each order so customers can set up templates in their preferred software. For customers using specialist electrical CAD software with label print output, the A4 sheet dimensions and label grid coordinates are sufficient to configure a compatible print layout.
