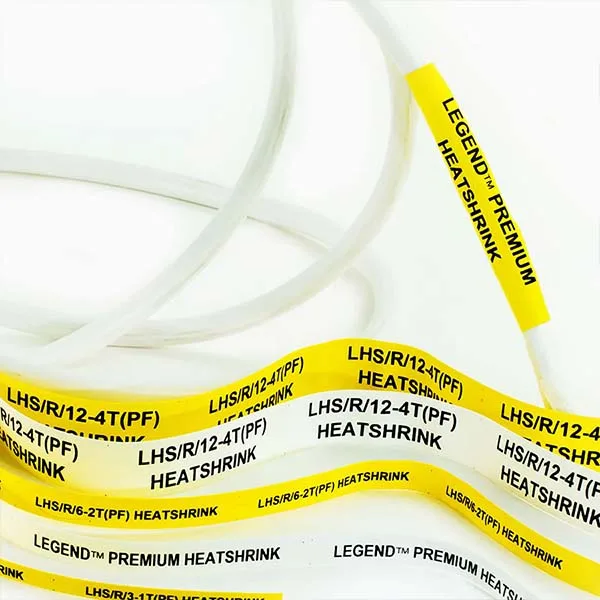

Cable Marker Label Sleeve Industrial Identification Heat Shrink Sleeve Label
- Cross-linked polyolefin construction
- 2:1 or 3:1 shrink ratios available
- Halogen-free and flame-retardant grades
- Continuous service to 125 °C
- Excellent resistance to oils and fuels
- Sharp thermal transfer print quality
Cable Marker Label Sleeve Industrial Identification Heat Shrink Sleeve Label Features
The Cable Marker Label Sleeve Industrial Identification Heat Shrink Sleeve Label from Vizlent is a heat-shrinkable polyolefin sleeve that slides over the conductor and recovers tightly around it when heat is applied, producing a permanent, slip-resistant identification marker.
The cross-linked polyolefin material offers a balance of mechanical toughness, chemical resistance, and dielectric performance suitable for harsh industrial wiring environments.
Available in 2:1 and 3:1 shrink ratios, the sleeves accommodate a wide range of wire gauges and connector profiles. Halogen-free and flame-retardant grades support low-smoke and low-toxicity requirements in rail, transit, and marine applications. VIZLENT supplies the sleeves as continuous tube on reels or as pre-cut markers in ladder format for automated printing systems.
Specifications
| Item | Cable Marker Label Sleeve Industrial Identification Heat Shrink Sleeve Label |
|---|---|
| Brand | Vizlent |
| Material | Cross-linked polyolefin, halogen-free option |
| Shrink Ratio | 2:1 or 3:1 |
| Flame Rating | UL 224 VW-1 / UL 94 V-0 grades available |
| Shrink Temperature | Starts at approximately 90 °C; full recovery by 120 °C |
| Service Temperature | -55 °C to 125 °C continuous |
| Wire Diameter Range | Typically 1.5–30 mm |
| Color | White, yellow, red, blue, black, custom |
| Printing Compatibility | Resin thermal transfer (auto-feed) |
| Format | Continuous reels or pre-cut ladder strips |
| Chemical Resistance | Resists oils, fuels, hydraulic fluids, IPA |
| MOQ | 2,000 pcs |
| Sample | Free stock samples; custom samples chargeable |
| Payment Term | T/T, PayPal, L/C |
| Production Time | 10–15 working days after artwork approval |
Applications:
Rail and transit electrical systems, marine wiring, military and aerospace harnesses, power utility distribution, industrial robots, and renewable energy cabinets.
You May Also Need
-
Circuit Board Label & PCB Labels Comprehensive range covering pre-reflow, post-reflow, and standard-service PCB labelling Face material options: polyimide (PI), white-coated PI, high-temp PET, standard PET Adhesive options matched to process temperature: silicone, high-temp acrylic, or standard acrylic Compatible with FR-4, ceramic, aluminium PCB, flex circuit, and component body surfaces Supports thermal-transfer, laser, and pre-printed […]
-
Automatic PCB Labelling Heat Resistant Labels Precision die-cut labels on accurately wound rolls for automated label applicators Consistent label gap and registration enables reliable tamp-blow and wipe-on application Polyimide face rated for lead-free SMT reflow up to 260 °C High-temperature silicone adhesive — stable, non-flowing, no outgassing at reflow White-coated polyimide face option for high-contrast […]
-
300 Degree Polyimide Labels for Semiconductor and Printed Circuit Board Manufacturing Processes Polyimide film rated for short-duration exposure up to 300 °C Survives semiconductor backend packaging processes and high-temperature cure ovens High-temperature silicone adhesive stable at continuous 260 °C and short-peak 300 °C No thermal decomposition, discolouration, or dimensional change at rated temperatures Send Your […]
-
Data Matrix Polyimide Labels for PCB identification Data Matrix ECC200 code encodes high data density in a compact square symbol Polyimide base film rated for continuous and peak service to 260 °C Survives lead-free SMT reflow without code degradation or delamination White-coated polyimide face provides high print contrast for reliable 2D scan rates Supports very […]
-
PCB Labels for Printed Circuit Board and Electronics Broad substrate compatibility: FR-4, ceramic, aluminium, and flex PCBs Heat-resistant polyimide or high-temperature polyester face material Stable adhesion through reflow, wave soldering, and cleaning processes Supports thermal-transfer, laser, and pre-printed barcode and QR code formats Available with sequential serial numbers, Data Matrix, Code 128, or QR codes […]
-
PCBs Labels Heat Resistant Labels Withstands SMT reflow soldering peak temperatures up to 260 °C Polyimide or high-temperature polyester face material options High-temperature silicone or acrylic adhesive — no bleed, no char Dimensionally stable through thermal cycling — no curl or shrinkage Compatible with thermal-transfer (resin ribbon) printing for permanent legends Send Your Inquiry Now […]
-
Adhesive Cable Labels Self Laminating Vinyl Labels from Vizlent offer strong bonding, print protection and durable wire identification.
-
Wrap-around Clear Laminated Cable Wire Marker Labels by Vizlent protect printed IDs with clear laminate, ensuring durable wire tracking.
-
Vinyl Wrap Around Cable Labels from Vizlent deliver flexible cable marking, strong adhesion, weather resistance and lasting identification.
Frequently Asked Questions
Yes. We offer both 2:1 and 3:1 shrink ratios with internal diameters covering wire gauges from approximately 1.5 mm up to 30 mm. Standard colors include white, yellow, red, blue, and black, and we can match custom colors and supply halogen-free or VW-1 rated formulations on request.
Our cross-linked polyolefin sleeves begin to shrink at around 90 °C and reach full recovery by 120 °C, allowing them to be installed with standard heat guns. Continuous service rating is typically -55 °C to 125 °C, suitable for harsh industrial, rail, and transit environments.
The standard MOQ is 2,000 pieces per SKU because of the dedicated reel setup required for extrusion and printing. Production takes 10–15 working days after artwork approval, and we can package the sleeves in ladder format compatible with most major industrial label printers.
Permanence is the most critical attribute of heat shrink sleeve labels. Once recovered, VIZLENT sleeves grip the conductor firmly and cannot be slid off or rotated without cutting, which makes them ideal for safety-critical and tamper-sensitive wiring such as aerospace and military harnesses.
Yes. The sleeves are produced in ladder and reel formats compatible with leading auto-feed thermal transfer printers, and the surface accepts resin ribbons for sharp, smear-resistant barcodes and serial numbers. We can supply printer and ribbon recommendations during specification.
