Barcode Steel Marking Labels
- Aggressive adhesive formulated for bare steel and oily metal surfaces
- High-resolution barcode printing compatibility (thermal transfer & laser)
- Temperature resistance up to 150°C–200°C continuous
- Resistant to cutting oils, lubricants, and mild solvents
- Available in matte silver polyester or anodized aluminum face stock
Barcode Steel Marking Labels Features
Barcode Steel Marking Labels are purpose-engineered for direct application onto steel substrates—including raw, painted, powder-coated, and lightly oiled surfaces—where standard labels fail to adhere or degrade rapidly.
The face stock is typically a polyester or aluminum foil laminate, chosen for dimensional stability under mechanical stress and thermal cycling. A specially formulated acrylic or rubber-based adhesive ensures bond integrity even when applied to low surface energy or contaminated steel without extensive pre-cleaning.
These labels maintain barcode scanability throughout demanding manufacturing, warehousing, and logistics workflows. The combination of durable face stock, aggressive adhesive, and chemical-resistant overlaminate ensures that 1D and 2D barcodes remain machine-readable after exposure to temperature swings, condensation, abrasion, and incidental chemical contact—conditions that routinely compromise standard paper or polypropylene labels on metal parts.
Specifications
| Item | Barcode Steel Marking Labels |
|---|---|
| Brand | Vizlent |
| Face Stock Material | Matte silver polyester / anodized aluminum foil |
| Adhesive Type | Permanent acrylic / high-tack rubber-based |
| Liner Material | Silicone-coated PET or glassine |
| Total Thickness | 0.10–0.18 mm |
| Temperature Resistance | –40°C to 200°C (continuous); short-term spikes to 250°C |
| Adhesion to Steel (PSTC-1) | ≥ 18 N/25 mm |
| Chemical Resistance | Cutting oils, mild solvents, water, mild acids |
| Printing Method | Thermal transfer, laser, UV inkjet, pre-print |
| Barcode Compliance | GS1, ISO/IEC 15416 (1D), ISO/IEC 15415 (2D) |
| Standard Sizes | 25×50 mm to 100×150 mm (custom available) |
| MOQ | 500–1,000 pieces (varies by specification) |
| Sample | Available upon request |
| Payment Term | T/T, L/C, or as negotiated |
| Production Time | 7–15 business days after artwork approval |
Applications:
Steel coil and sheet tracking in metal service centers; work-in-process (WIP) identification in fabrication shops; asset management on structural steel components; parts traceability in automotive stamping plants; finished goods labeling in steel distribution; equipment nameplates and maintenance tracking on industrial machinery.
You May Also Need
-
Vizlent Labels For Steel And Metal Manufacture Application deliver strong adhesion, chemical resistance, and barcode durability for demanding metal production environments.
-

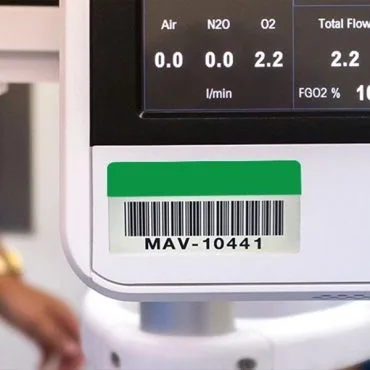

Vizlent Metal Barcode Label Medical Metal Asset Tags offer autoclave resistance, sharp barcode readability, and durable adhesion for hospital equipment tracking.
-

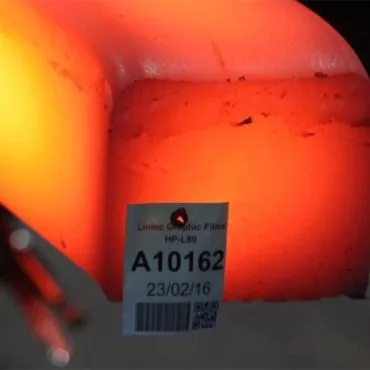

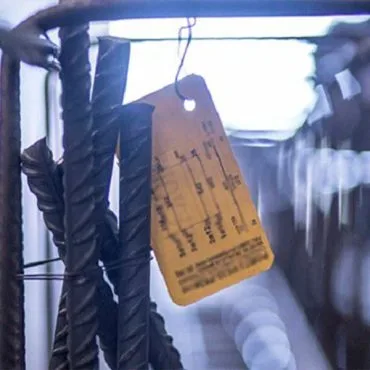

Vizlent High Temperature Hangtags for Metal Industry endure furnace heat and harsh handling, keeping parts identified through heat treatment and finishing processes.
-
Vizlent High Performance Labels For Metal Manufacturing resist chemicals, abrasion, and heat—delivering reliable traceability across the toughest plant conditions.
-
Vizlent Extra High Temperature Labels For Metal survive up to 300°C+, maintaining adhesion and print legibility on metal parts through harsh industrial processes.
-
Vizlent Barcode Steel Marking Labels offer superior adhesion on bare metal, high-temp resistance, and sharp barcode readability for industrial tracking.
Frequently Asked Questions
Yes. VIZLENT offers full customization including label dimensions, barcode symbologies (Code 128, QR, Data Matrix, etc.), sequential numbering, human-readable text, and color printing. We can supply labels on rolls, sheets, or fan-fold formats to suit your applicator or manual workflow.
Our Barcode Steel Marking Labels use a high-tack adhesive system engineered to wet out on lightly oiled and rough steel without solvent wiping in most production environments. For heavily contaminated or galvanized surfaces, a brief wipe with isopropyl alcohol is recommended to maximize bond strength and long-term durability.
Standard MOQ begins at 500 pieces for pre-printed formats and 1,000 pieces for blank stock, though we accommodate larger volume orders with improved unit pricing. Production lead time is 7–15 business days following artwork approval and order confirmation. Rush production may be available depending on current capacity.
Barcode Steel Marking Labels are rated for continuous service from –40°C to 200°C, with short-duration tolerance up to 250°C. The polyester or aluminum face stock maintains dimensional stability and the adhesive retains peel strength across this range, ensuring barcodes remain scannable even after thermal cycling common in steel manufacturing and finishing operations.
Yes. VIZLENT’s Barcode Steel Marking Labels are compatible with major thermal transfer printer brands including Zebra, SATO, Honeywell, and Datamax when used with appropriate resin or resin-wax ribbons. We provide face stock specifications to help you select the correct ribbon type, ensuring sharp, durable barcode printing that resists smearing and chemical exposure on the production floor.
